MIL-W-22759/12 | SAE AS22759/12

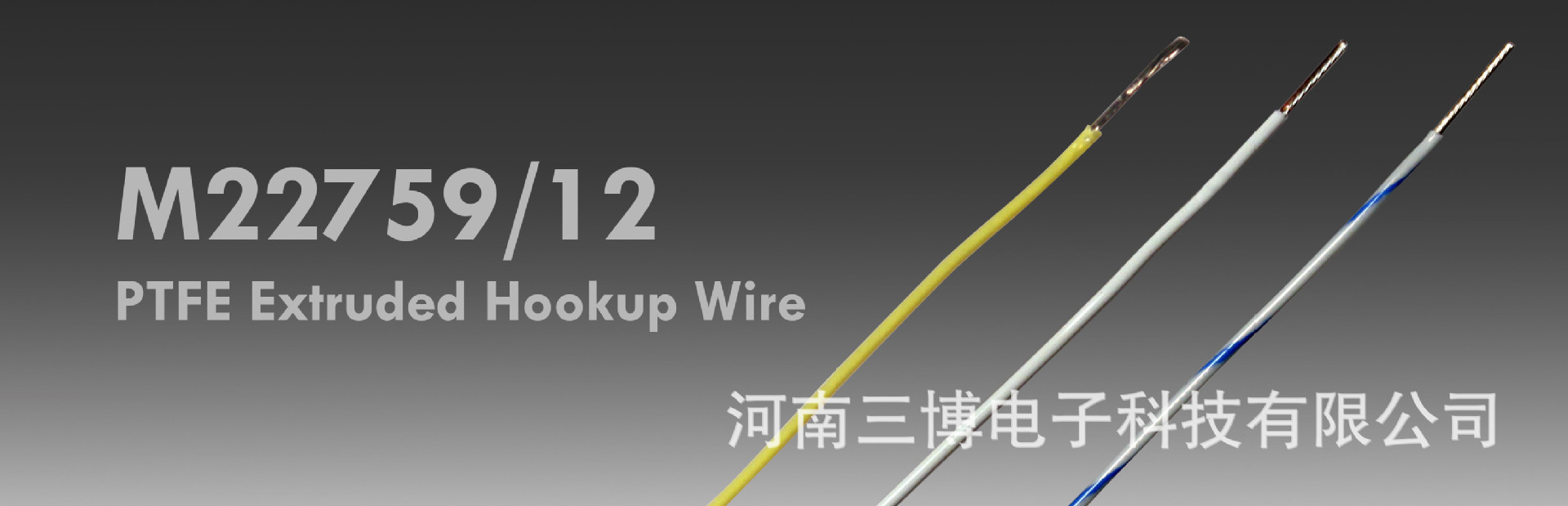

MIL-W-22759/12 (M22759/12)| SAE AS22759/12線纜
APPLICATIONS:High temperature applications such as aircraft engines and where increased abrasion resistance is required。（應用：高溫耐磨損應用，例如飛機發動機應用及其他需要增加耐磨損性的方面）

SAE AS22759/12 Wire MIL Spec Wire
MIL-W-22759/12 Wire
M22759/12 Wire
standard wall
CHARACTERISTICS:（產品特性）
M22759/12 Wire Construction:（m22759/12 線纜結構）
PRODUCT DESCRIPTION:（產品描述：）
Conductor: Stranded Nickel Plated Copper（導體：絞合鍍鎳銅）

M22759/12 Wire Ratings:（m22759/12線纜等級）
Voltage: 600 Volts（額度電壓：600伏特）
Temperature Range：-55°C to 260°C（溫度范圍：-55攝氏度到260攝氏度）
線規范圍28-8
M27500 Component： RE （m27500代碼：RE)
Mil-Spec: M22759/12(軍標代碼：M22759/12）
SAE Spec：AS22759/12（SAE 代碼：AS22759/12）
Insulation Material： extruded PTFE insulation(絕緣體材質：擠出聚四氟乙烯）
Insulation：PTFE non-stick coating with .010 nominal wall thickness（絕緣：聚四氟乙烯不粘涂層與0.010公稱壁厚）
MIL-W-22759/12 Wire Identification:（MIL-W-22759/12線纜識別方法）
Green or white print on the insulation（絕緣體上有綠色或白色的印刷）
Military part number including AWG （軍標代碼包括線規號）

PART NUMBER	AWG SIZE	Conductor Stranding	Approx LBS/MFT	Nom. Dia. of Cond.	min O.D. (in)	Max O.D. (in)	Cond. Material	Min. Temp	Max. Temp	Voltage
M22759/12-28-0	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-28-1	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-28-2	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-28-3	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-28-4	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-28-5	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-28-6	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-28-7	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-28-8	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-28-9	28	7/36	2	0.015	0.031	0.035	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-0	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-1	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-2	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-3	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-4	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-5	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-6	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-7	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-8	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-26-9	26	19/38	2	0.019	0.036	0.04	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-0	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-1	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-2	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-3	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-4	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-5	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-6	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-7	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-8	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-24-9	24	19/36	3	0.024	0.041	0.045	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-0	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-1	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-2	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-3	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-4	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-5	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-6	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-7	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-8	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-22-9	22	19/34	4	0.03	0.047	0.051	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-0	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-1	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-2	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-3	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-4	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-5	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-6	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-7	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-8	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-20-9	20	19/32	6	0.038	0.056	0.06	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-0	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-1	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-2	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-3	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-4	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-5	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-6	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-7	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-8	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-18-9	18	19/30	8	0.047	0.066	0.07	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-0	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-1	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-2	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-3	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-4	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-5	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-6	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-7	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-8	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-16-9	16	19/29	10	0.053	0.073	0.077	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-0	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-1	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-2	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-3	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-4	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-5	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-6	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-7	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-8	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-14-9	14	19/27	15	0.067	0.088	0.092	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-0	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-1	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-2	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-3	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-4	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-5	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-6	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-7	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-8	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-12-9	12	19/25	23	0.086	0.108	0.114	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-0	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-1	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-2	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-3	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-4	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-5	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-6	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-7	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-8	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-10-9	10	37/26	35	0.109	0.135	0.143	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-0	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-1	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-2	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-3	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-4	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-5	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-6	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-7	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-8	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
M22759/12-8-9	8	133/29	66	0.163	0.2	0.208	Nickel Plated Copper	-55°C	260°C	600V
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/12-20-9; white with orange stripe -M22759/12-20-93.
