MIL-W-22759/8 | SAE AS22759/8

MIL-W-22759/8 (M22759/8)| SAE AS22759/8線纜
APPLICATIONS:High temperature applications such as aircraft engines and where increased abrasion resistance is required。（應用：高溫耐磨損應用，例如必須增加耐磨損性的飛機發動機應用）
Mineral filled PTFE provides excellent mechanical strength(礦物填充聚四氟乙烯提供了優異的機械強度)

Mil-W-22759/8 may be used in many applications such as in aircraft engines and wherever abrasion is present.（m22759/8線纜可以應用于多種領域，比如飛機發動機應用及其他存在磨損的使用需求）

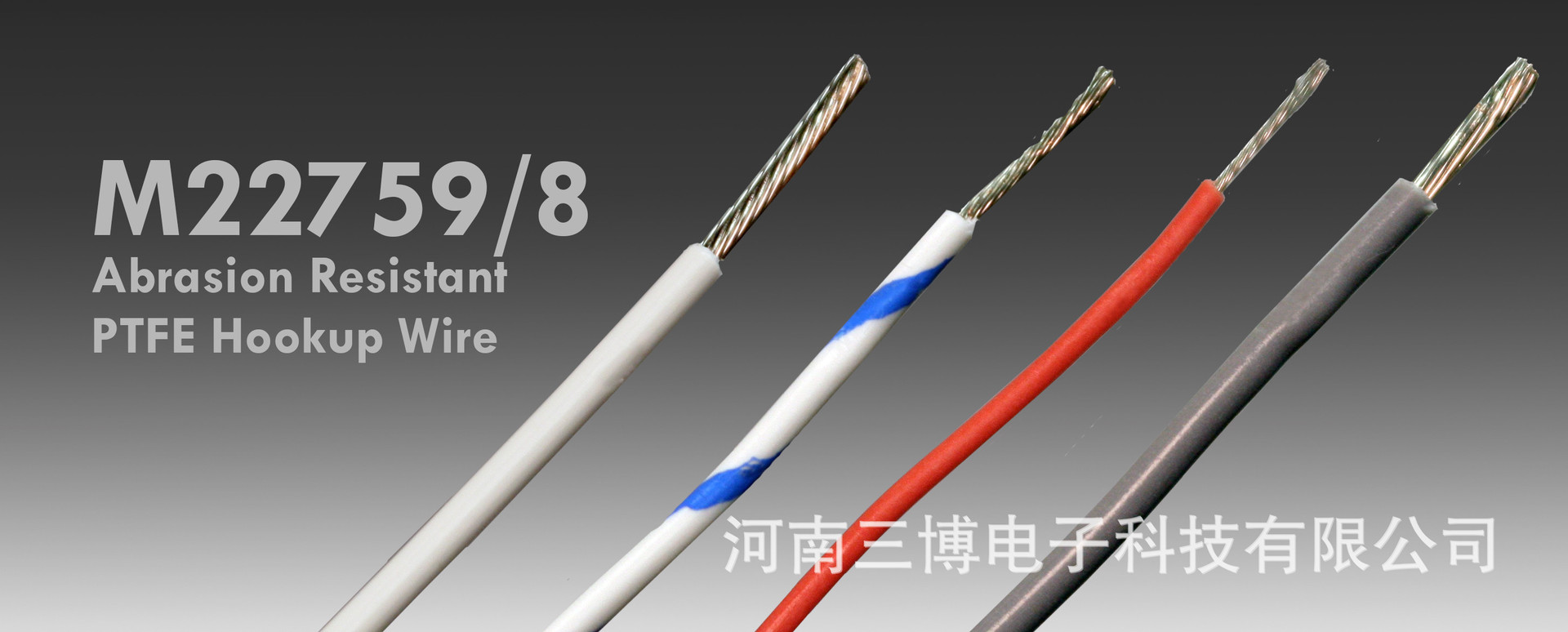

SAE AS22759/8 Wire
MIL Spec Wire
MIL-W-22759/8Wire
M22759/8 Wire
CHARACTERISTICS:（產品特性）
M22759/8 Wire Construction:（m22759/8 線纜結構）
PRODUCT DESCRIPTION:（產品描述：）
Conductor: Stranded Silver Plated Copper（導體：絞合鍍銀銅）
Insulation: Mineral filled extruded PTFE insulation(絕緣體材質：礦物填充聚四氟乙烯）
medium weight（中等重量）
M22759/8 Wire Ratings:（m22759/8線纜等級）
Voltage: 600 Volts（額度電壓：600伏特）
Temperature Range：-55°C to 260°C（溫度范圍：-55攝氏度到260攝氏度）
線規范圍24-4
M27500 Component： TA （m27500代碼： TA)
Mil-Spec: M22759/8(軍標代碼：M22759/8）
SAE Spec：AS22759/8（SAE 代碼：AS22759/8）
Insulation Material： Mineral filled extruded PTFE insulation(絕緣體材質：礦物填充聚四氟乙烯）

PART NUMBER	AWG SIZE	Conductor Stranding	Approx LBS/MFT	Nom. Dia. of Cond.	min O.D. (in)	Max O.D. (in)	Cond. Material	Min. Temp	Max. Temp	Voltage
M22759/8-24-0	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-24-1	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-24-2	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-24-3	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-24-4	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-24-5	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-24-6	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-24-7	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-24-8	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-24-9	24	19/36	4.3	0.024	0.06	0.064	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-0	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-1	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-2	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-3	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-4	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-5	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-6	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-7	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-8	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-22-9	22	19/34	6	0.03	0.071	0.075	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-0	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-1	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-2	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-3	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-4	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-5	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-6	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-7	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-8	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-20-9	20	19/32	8.1	0.038	0.08	0.084	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-0	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-1	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-2	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-3	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-4	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-5	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-6	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-7	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-8	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-18-9	18	19/30	11	0.047	0.09	0.094	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-0	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-1	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-2	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-3	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-4	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-5	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-6	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-7	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-8	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-16-9	16	19/29	13.8	0.053	0.099	0.105	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-0	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-1	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-2	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-3	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-4	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-5	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-6	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-7	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-8	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-14-9	14	19/27	18.6	0.067	0.112	0.118	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-0	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-1	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-2	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-3	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-4	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-5	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-6	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-7	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-8	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-12-9	12	19/25	28.5	0.086	0.131	0.137	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-0	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-1	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-2	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-3	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-4	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-5	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-6	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-7	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-8	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-10-9	10	37/26	41.8	0.109	0.154	0.162	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-0	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-1	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-2	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-3	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-4	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-5	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-6	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-7	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-8	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-8-9	8	133/29	73.1	0.163	0.215	0.225	Nickel Plated Copper	-55°C	260	600V
M22759/8-6-0	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-6-1	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-6-2	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-6-3	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-6-4	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-6-5	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-6-6	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-6-7	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-6-8	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-6-9	6	133/27	113	0.21	0.264	0.276	Nickel Plated Copper	-55°C	260	600V
M22759/8-4-0	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-4-1	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-4-2	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-4-3	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-4-4	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-4-5	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-4-6	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-4-7	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-4-8	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
M22759/8-4-9	4	133/25	173	0.26	0.321	0.335	Nickel Plated Copper	-55°C	260°C	600V
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/8-20-9; white with orange stripe -M22759/8-20-93.
