MIL-W-22759/5 | SAE AS22759/5

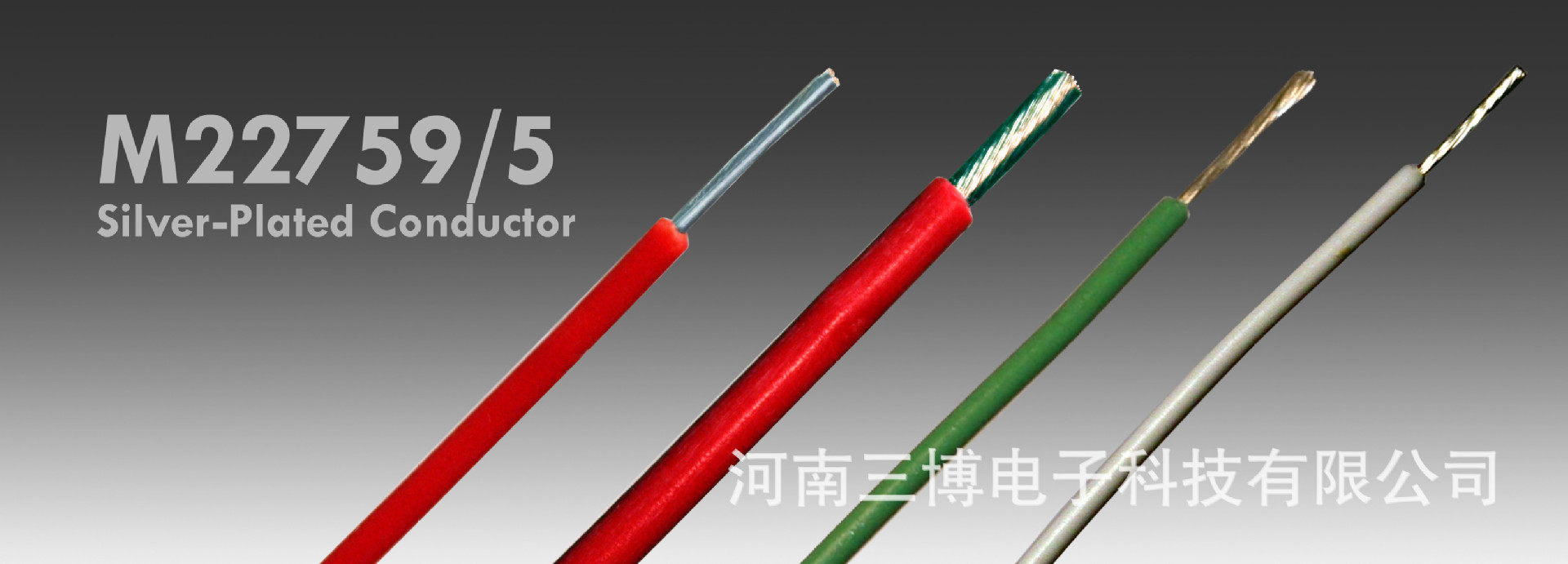

MIL-W-22759/5 (M22759/5)| SAE AS22759/5線纜
APPLICATIONS:High temperature applications such as aircraft engines and where increased abrasion resistance is required。（應用：高溫耐磨損應用，例如必須增加耐磨損性的飛機發動機應用）

M22759/5wire may be used in aircraft engines and in other military, government, or civilian applications where abrasion is present.（M22759/5線纜可應用于飛機發動機項目以及其他軍用民用政府機關領域的耐磨現實應用）

Mineral filled PTFE provides excellent mechanical strength(礦物填充聚四氟乙烯提供了優異的機械強度)

CHARACTERISTICS:（產品特性）
SAE AS22759/5 Wire
MIL Spec Wire MIL-W-22759/5 Wire (M22759/5Wire)

M22759/5Wire Construction:（m22759/5線纜結構）
Conductor: Stranded Silver Plated Copper（導體：絞合鍍銀銅）

Insulation: Mineral filled extruded PTFE insulation(絕緣體材質：礦物填充聚四氟乙烯）

M22759/5 Wire Ratings:（m22759/5線纜等級）
Voltage: 600 Volts（額度電壓：600伏特）
Temperature:-55°C to 200°C（溫度范圍：-55攝氏度到200攝氏度）

線規范圍24-8
M27500 Component VA （m27500代碼： VA)
Mil-Spec: M22759/5(軍標代碼：M22759/5）
SAE Spec：AS22759/5（SAE 代碼：AS22759/5）
Insulation Material： Mineral filled extruded PTFE insulation(絕緣體材質：礦物填充聚四氟乙烯）

PART NUMBER	AWG SIZE	Conductor Stranding	Approx LBS/MFT	Nom. Dia. of Cond.	Max O.D. (in)	Cond. Material	Min. Temp	Max. Temp	Voltage
M22759/5-24-0	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-24-1	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-24-2	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-24-3	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-24-4	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-24-5	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-24-6	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-24-7	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-24-8	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-24-9	24	19/36	6	0.024	0.075	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-0	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-1	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-2	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-3	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-4	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-5	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-6	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-7	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-8	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-22-9	22	19/34	8	0.03	0.085	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-0	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-1	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-2	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-3	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-4	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-5	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-6	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-7	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-8	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-20-9	20	19/32	10	0.038	0.095	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-0	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-1	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-2	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-3	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-4	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-5	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-6	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-7	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-8	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-18-9	18	19/30	12.9	0.047	0.11	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-0	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-1	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-2	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-3	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-4	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-5	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-6	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-7	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-8	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-16-9	16	19/29	16.6	0.053	0.125	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-0	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-1	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-2	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-3	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-4	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-5	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-6	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-7	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-8	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-14-9	14	19/27	22.5	0.067	0.143	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-0	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-1	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-2	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-3	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-4	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-5	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-6	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-7	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-8	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-12-9	12	19/25	30.9	0.086	0.16	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-0	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-1	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-2	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-3	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-4	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-5	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-6	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-7	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-8	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-10-9	10	37/26	42.5	0.108	0.18	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-0	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-1	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-2	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-3	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-4	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-5	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-6	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-7	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-8	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
M22759/5-8-9	8	133/29	77	0.162	0.248	Silver Plated Copper	-55°C	200°C	600V
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/5-20-9; white with orange stripe -M22759/5-20-93.
