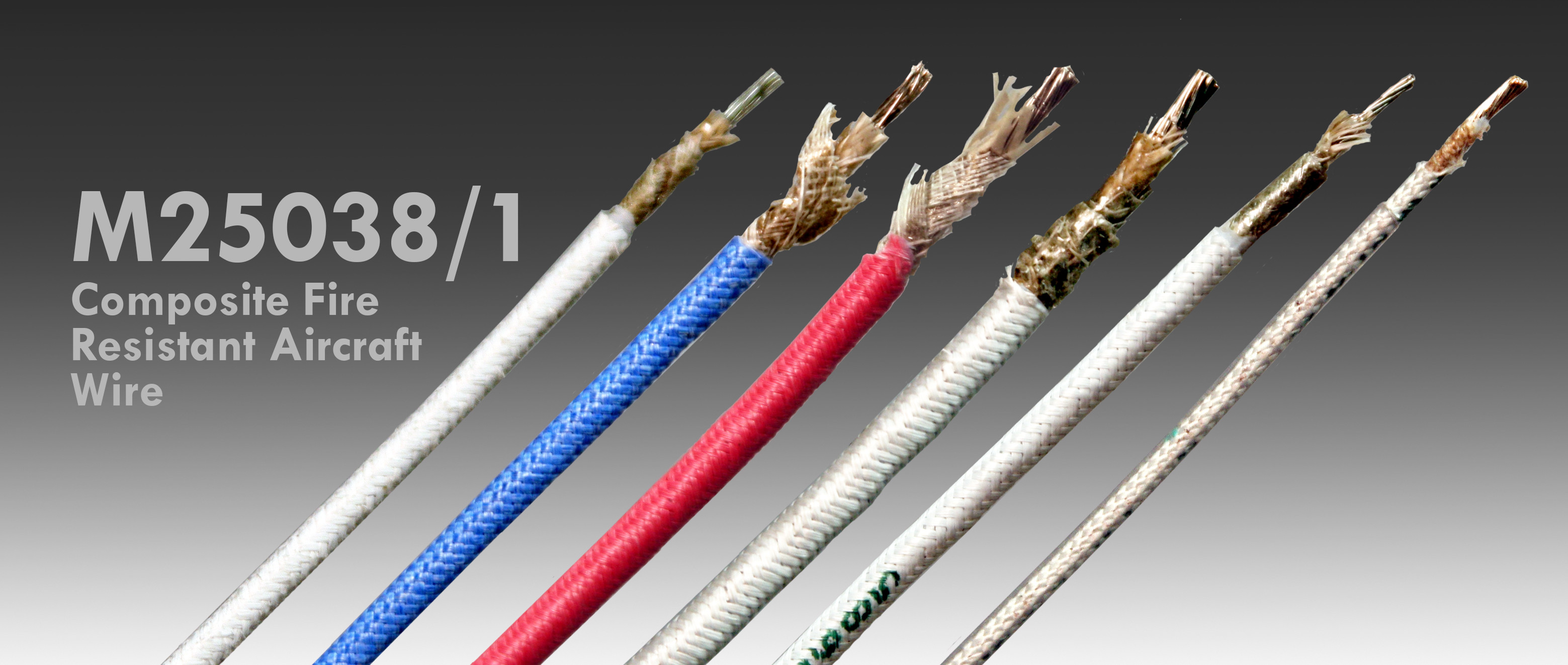

MIL-W-25038/1(Thermazone I)wire—high-temperature, abrasion resistant

M25038/1 Description:
MIL-W-25038/1 (Thermazone I) wires are designed for critical circuit applications where wires must operate in extremely harsh environments, under vibration, and with direct flame exposure. This heavy-duty, non-asbestos construction offers excellent mechanical performance and abrasion resistance.

M25038/1 Construction:

Conductor: 27% Nickel-Plated Copper
Jacket: PTFE-Coated Fiberglass Braid and Finisher
Insulation: Composite Inorganic Dielectric
Colors: Color coded to MIL-STD-104
Identification: Surface printed per MIL-W-25038
M25038/1 Ratings:

Voltage Rating: 600V
Temperature Rating: 260°C

應用與描述：

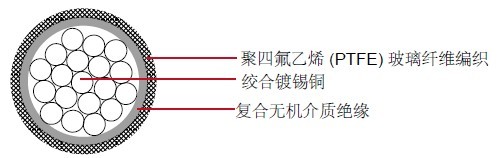

單芯復合無機介質絕緣，MIL-W-25038/1 電纜運行在極其惡劣的環境下，應用在振動，并且與火焰直接接觸的的電路中，具有優良的機械性能及耐磨性能。
結構：

導體：27%的絞合鍍錫銅
絕緣：復合無機介質絕緣
護套：聚四氟乙烯 (PTFE) 玻璃纖維編織
標識：表面印刷 MIL-W-25038
特性：

額定溫度：
-55°C +260°C
額定電壓：600 volts
顏色編碼：MIL-STD-104
尺寸和重量：

Mil-Spec #	AWG SIZE	Conductor Stranding	Min O.D. (in)	Max O.D. (in)	Max. Resistance @ 20°C OHMS/MFT	Approx LBS/MFT
軍標訂貨號碼	線規尺寸	導體絞合	最小成纜外徑（英寸）	最大成纜外徑（英寸）	最大電阻 @20°C OHMS/MFT	重量（磅/千英尺）
M25038/1-22	22	19/34	0.1	0.116	23.7	10
M25038/1-20	20	19/32	0.109	0.125	14.6	12
M25038/1-18	18	19/30	0.119	0.135	9.4	15
M25038/1-16	16	19/29	0.127	0.147	6.85	19
M25038/1-14	14	19/27	0.15	0.17	4.32	25
M25038/1-12	12	19/25	0.165	0.185	2.78	35
M25038/1-10	10	49/27	0.21	0.23	1.68	55
M25038/1-8	8	133/29	0.256	0.28	0.936	85
M25038/1-6	6	133/27	0.318	0.342	0.591	127
M25038/1-4	4	133/25	0.383	0.407	0.375	192
M25038/1-2	2	665/30	0.46	0.484	0.241	291
M25038/1-1	1	817/30	0.497	0.533	0.196	347
M25038/1-1/0	1/0	1035/30	0.537	0.573	0.153	415
M25038/1-2/0	2/0	1330/30	0.595	0.635	0.12	520
M25038/1-3/0	3/0	1672/30	0.66	0.7	0.096	648
M25038/1-4/0	4/0	2109/30	0.73	0.77	0.077	793
