MIL-R-6106標準功率繼電器

Eaton /safran功率繼電器

eaton 6041Hxxx series技術文檔



功率繼電器連續值班，II型，密封
功率繼電器的間歇， III型，啟封

6041H105		eaton/leach
6041H11		eaton/leach
6041H123		eaton/leach
6041H144		eaton/leach
6041H149		eaton/leach
6041H200		eaton/leach
6041H201		eaton/leach
6041H202		eaton/leach
6041H203		eaton/leach
6041H205		eaton/leach
6041H206		eaton/leach
6041H209		eaton/leach
6041H212		eaton/leach

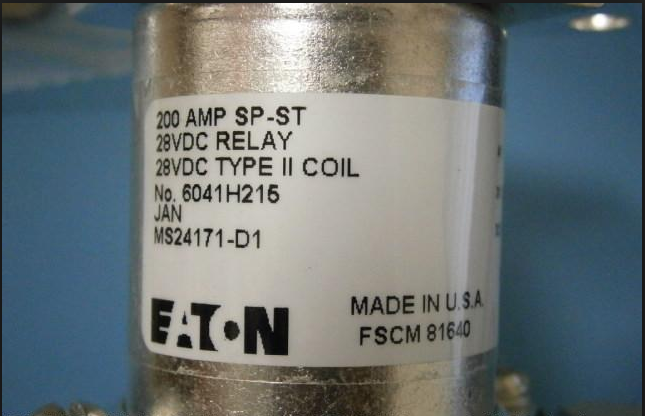

6041H215		eaton/leach
6041H216		eaton/leach
6041H217		eaton/leach
6041H218		eaton/leach
6041H219		eaton/leach
6041H2202		eaton/leach
6041H230		eaton/leach
6041H51		eaton/leach
6041H53		eaton/leach
6041H532		eaton/leach
6041H80		eaton/leach
6046H39		eaton/leach
6046H392		eaton/leach
6046H46		eaton/leach
6046H53		eaton/leach
9565H13		eaton/leach
9565H2		eaton/leach
9565H29		eaton/leach
9565H94		eaton/leach
9565H95		eaton/leach
AN3362-1		eaton/leach
AN3362-1*		eaton/leach
AN-3392-1		eaton/leach
MS24152-D1		eaton/leach
MS24152-D1*		eaton/leach
MS24166-D1		eaton/leach
MS24166-D2		eaton/leach
MS24171-D1		eaton/leach
MS24171-D2		eaton/leach
MS24172-D1		eaton/leach
MS24172-D1		eaton/leach
MS24172-D2		eaton/leach
MS24178-D1		eaton/leach
MS24179-D1		eaton/leach
MS24185-D1		eaton/leach
MS24185-D2		eaton/leach
MS24187-D1		eaton/leach
MS24187-D2		eaton/leach
MS24187-D2		eaton/leach
MS24192-D1		eaton/leach
MS24192-D2		eaton/leach
MS24193-D1		eaton/leach
MS25031-D1B		eaton/leach
MS25032-1		eaton/leach



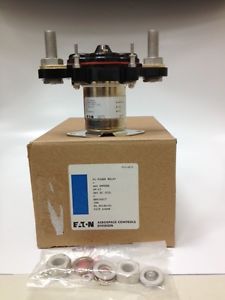

Power Relays — Continuous Duty, Type II, Unsealed
   Intermittent Duty, Type III, Unsealed



General Specifications
• Designed to MIL-R-6106
  - Type II Unsealed Continuous Duty
  - Type III Unsealed Intermittent Duty
- Covered/Gasketed Contact Area
  - Twin-break Silver Alloy Contacts
• Meets Explosion, Humidit, Salt, Spray, Sand, and Dust require-
ments.
• Altitude: 50,000 feet
• Shock: 25 g's ½ Sine 6 to 9 milliseconds
  - Maximum contact opening: 2 milliseconds
• Acceleration: 10 g's
• Vibration Limits:
  - 5 to 10 Hz: 0.8 in DA
  - 10 to 55 Hz: 0.6 in DA
  - 55 to 2000 Hz: 2 g's
• Temperature Range: -55°C to 71°C
• Insulation Resistance:
  - 100 megohm minimum initially
  - 50 megohm minimum after tests
• Dielectric:
  - 1250 Vac minimum initially
  - 1000 Vac minimum after tests
• Life:
  - Electrical Operations: 50,000 cycles   - Mechanical Operations at 25% of Rated Resistive Load:
100,000 cycles
• Minimum Current: 10% of Rated DC Resistive Load
• Intermittent Duty Ratings:
  - % of Rated Resistive
  - Time On in Minutes
  - Cooling time is required between successive over load applications



Cat N. 6041H217
•  SPST rated 400 Amp resistive
 and motor at 28 Vdc continu-
 ous duty with top mounting.
•  MS24185-D1 - 2.6 Lbs/ 1179gm

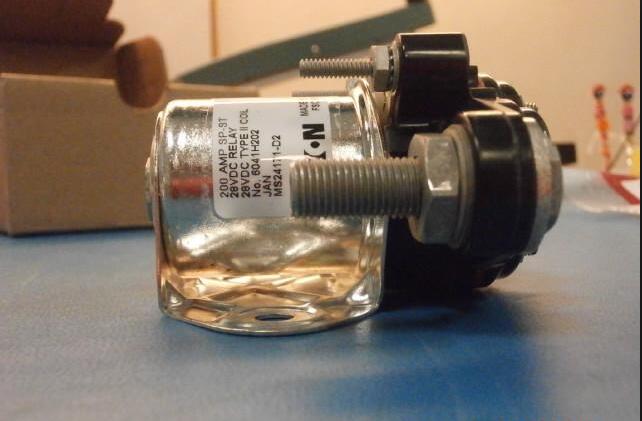

Cat N. 6041H202（MS24171-D2）
•  SPST rated 200 Amp resistive
 and motor at 28 Vdc continu-
 ous duty with side mounting.
•  MS24171-D2 - 1.25 Lbs/ 567gm



Cat N. 6041H209
•  2 PST rated 100 Amp resis-
 tive at 28 Vdc and 75
 amperes 115/200V 400 Hz
 intermittent duty with top
mounting.
•  AN-3392-1 - 1.5 Lbs/ 680 gm

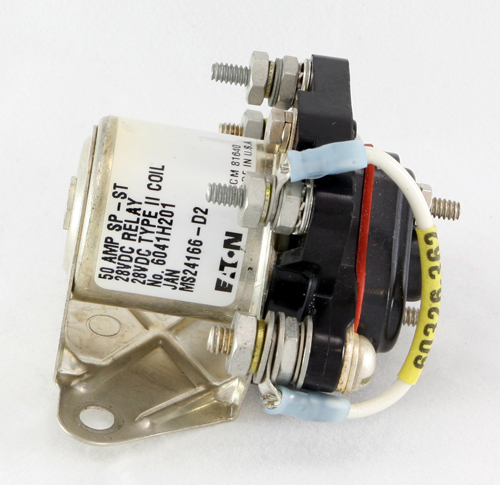

Cat N. 6041H201
•  SPST rated 50 Amp resistive,
 inductive and motor at 28 Vdc
continuous duty with side
mounting.
•  MS24166-D2 - 0.5 Lbs/ 225 gm



Cat N. 9565H2
•  3 PST rated 25 Amp resistive,
inductive and motor at 28 Vdc
and 115/200 V 400 Hz contin-
 uous duty cycle with base
mounting.
•  MS24192-D1 - 1.1 Lbs/ 499 gm





倒車和動態制動繼電器Reversing and Dynamic Braking Relay

Cat N. 6046H39
•  Control of split field series
motors.
•  SPST see circuit diagram 6
for details.
•  Rated 28 Vdc 50 Amp N.O.,
25 Amp N.C
•  2.9 Lbs./1315 gm

9565H29

6046H39

6046H46

6046H53

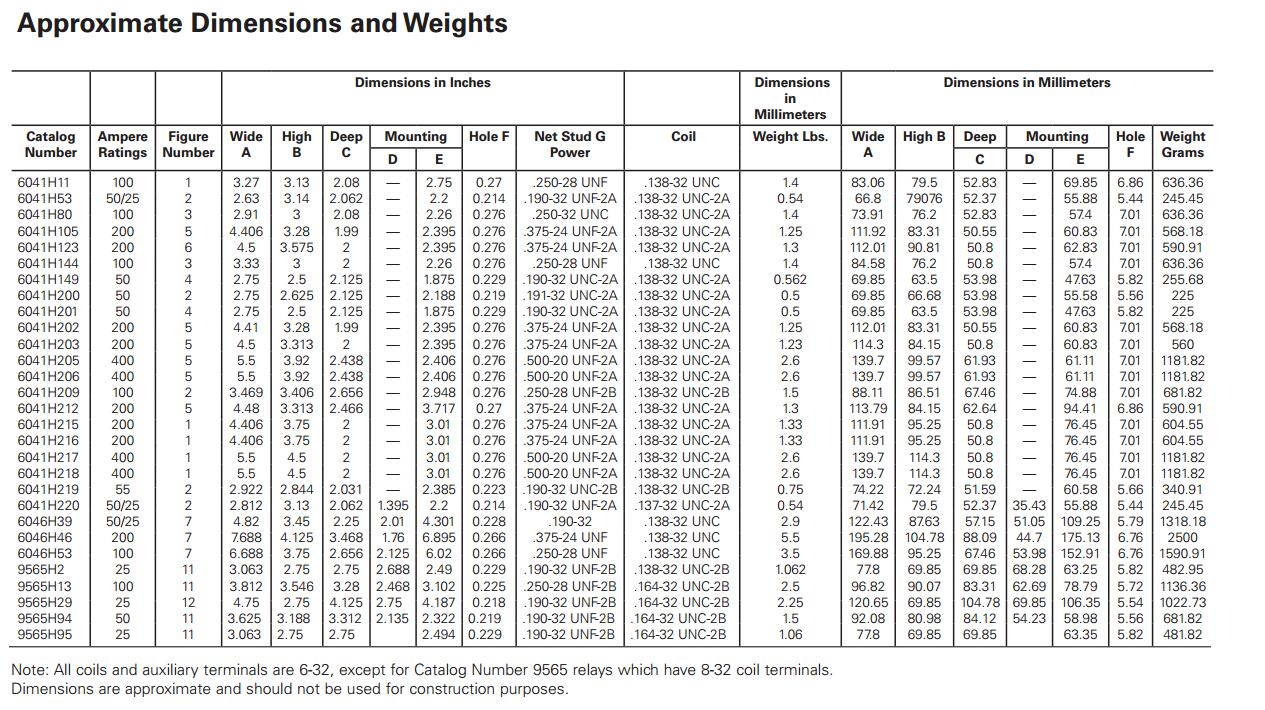

MS Part Number Summary （MS標準部件匯總）

AN3362-1*	6041H209	MS24179-D1	6041H218
MS24152-D1*	9565H29*	MS24185-D2	6041H205
MS24166-D1	6041H200	MS24187-D1	6041H220
MS24166-D2	6041H201	MS24187-D2	6041H230
MS24171-D1	6041H215	MS24192-D1	9565H2
MS24171-D2	6041H202	MS24193-D1	9565H94
MS24172-D1	6041H216	MS25031-D1B	6046H53
MS24172-D2	6041H203	MS24185-D1	6041H217
MS24178-D1	6041H219	MS25032-1	6046H46

不適用于新設計



 轉換零件號Conversion Part Number



AN Part Number	Use MS Part Number	Eaton Part Number
3343-1	—	9565H13
3350-1	MS24166-D2	6041H201
3362-1	—	6041H209
3370-1	MS24171-D2	6041H202
3371-1	MS24172-D2	6041H203
3380-1	MS24185-D2	6041H205
—	MS25030-D1B	6041H51
3381-2	MS24179-D1	6041H218

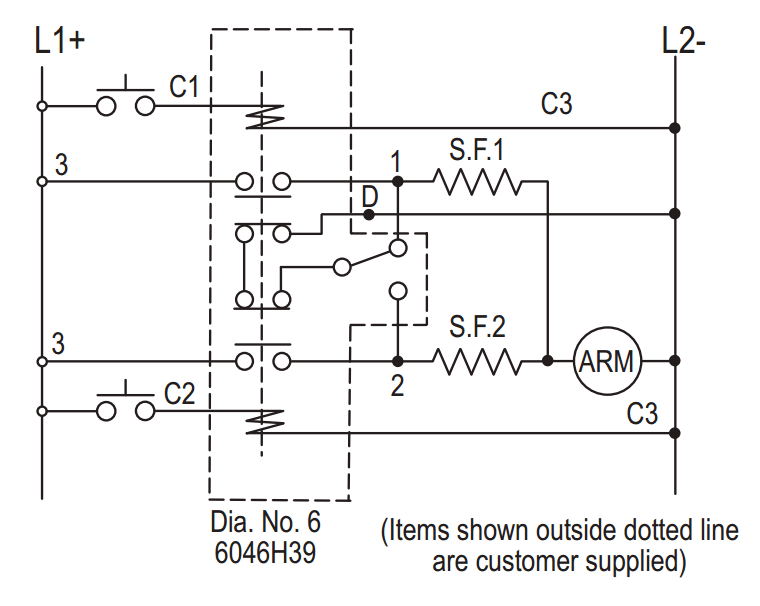

Typical Operation:P/N 6046H39
All items shown within dotted lines are part of the relay. All other
parts external to dotted lines, including switches connected to C1 &
C2 customer supplied.
Internal Mechanical Interlocks
Prevents the opposite contacts from transferring when either one of
the coils is energized and the respective contacts are closed.
Reversing Operation
Closing either external start/stop switch at C1 or C2 will cause the
motor to turn in either direction.
Dynamic Braking Operation
Internal switch provides for dynamic braking current flow through
the motor shunt-fields series (SF) 1 and 2. Switch S is mechanically
closed when either coil is energized and maintains that position until
the alternate coil is energized. Switch S is shown in the last position
commanded by external start/stop switch at C1.
